Parameter
| Product Name | Temax hidden soft close hinges |
| Model Number | HBG005 |
| Material | Zinc alloy + Aluminum alloy |
| Type | Hydraulic concealed hinge with buffer, two-dimensional adjustment |
| Specifications | 194×30mm (177×28mm/155×25mm also available) |
| Maximum Opening Angle | 180° |
| Positioning Method | 90°soft positioning, 90°~180°arbitrary stop |
| Load Capacity | 40KG/piece |
| Adjustment Range | Horizontal ±2mm / Vertical ±4mm |

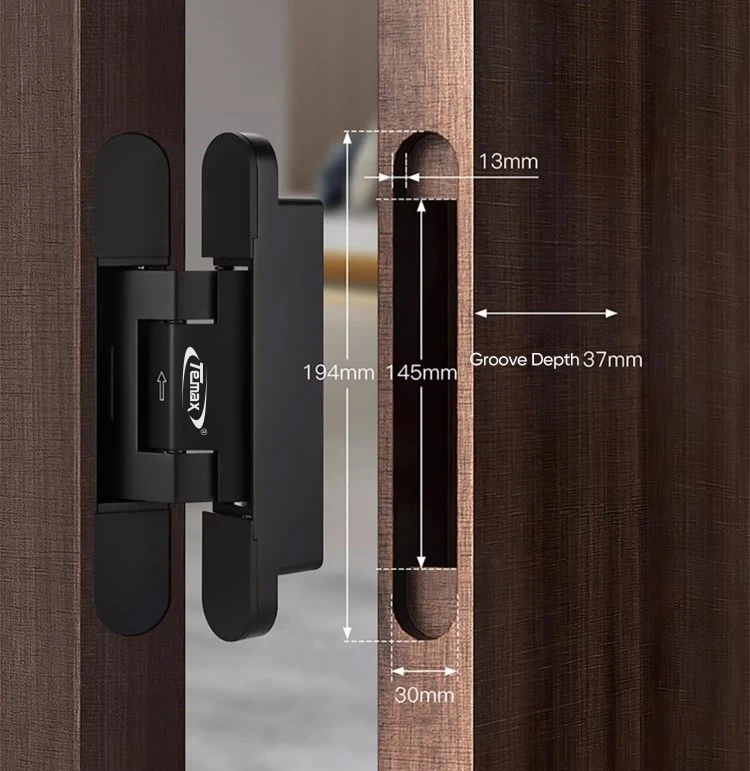

| Applicable Door Types | Wooden doors (door panel thickness >38mm, groove depth 37mm) |
| Applicable Temperature | -30℃ ~ 50℃ |
| Surface Treatment | 6 colors: Black/Gray/Silver/Gold/Antique Bronze/Antique Red Bronze |
| Warranty | 300,000 opening and closing tests |
| Suitable Locations | Hotels, guesthouses, KTV, hospitals, residential room doors |
Product Advantages

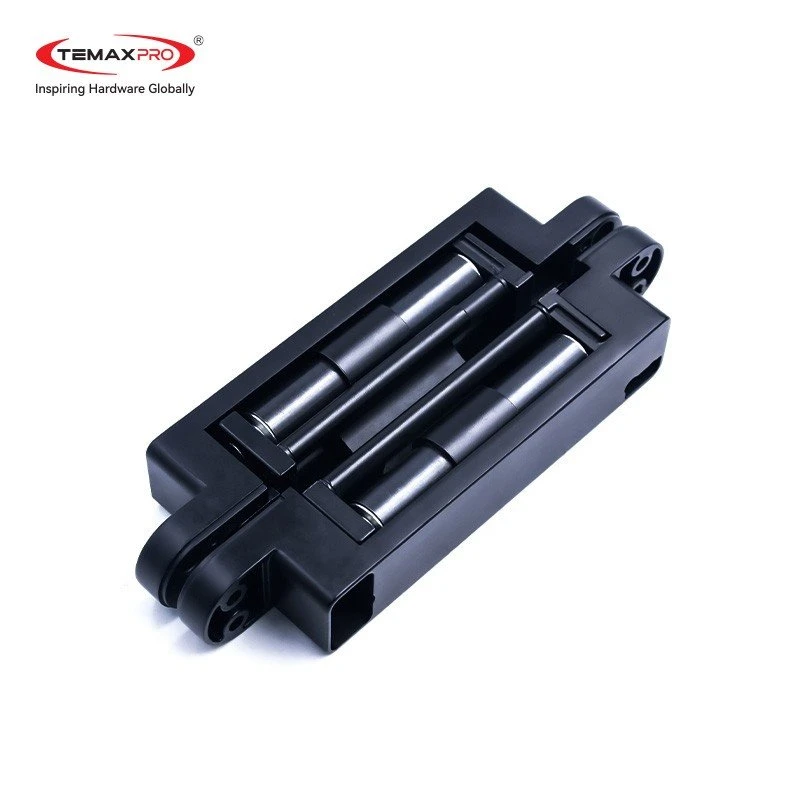

Hydraulic Buffer, Silent Closing
Temax hidden soft close hinges features a 30-10° slow closing zone design, ensuring smooth and silent closing, suitable for hotels, hospitals, and home use. Tested for 300,000 opening and closing cycles and comes with a 5-year warranty, reducing after-sales risks for large-scale projects.

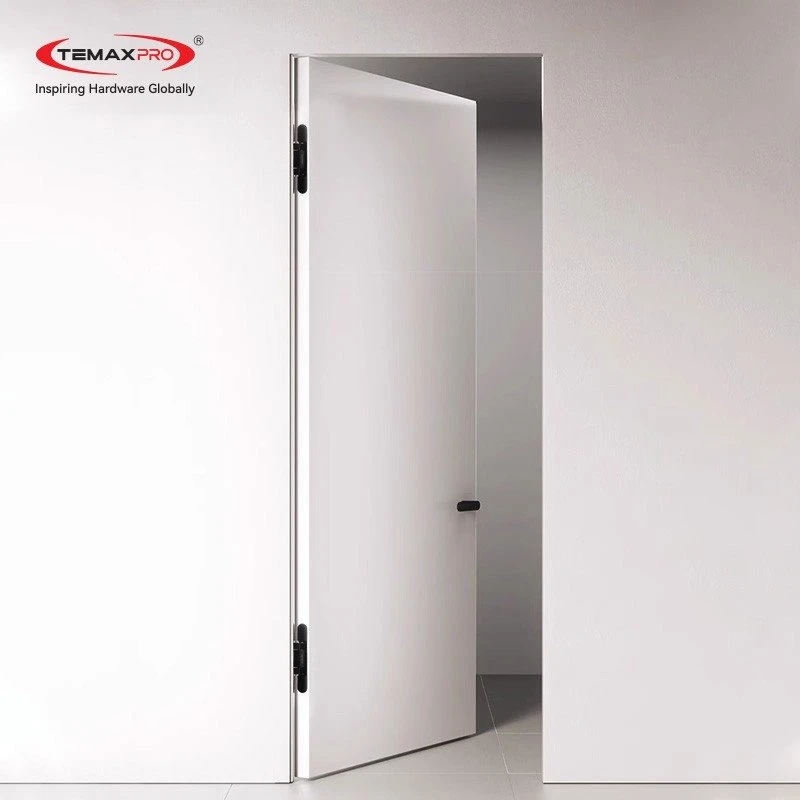

Fully Concealed Installation, 180° Wide Opening Angle
Concealed design with no exposed hardware, suitable for minimalist and hidden doors. Supports a 180° wide opening angle and can be positioned anywhere between 90-180°, superior to ordinary hinges and competing products that mostly offer 130°, facilitating ventilation and the movement of large furniture.

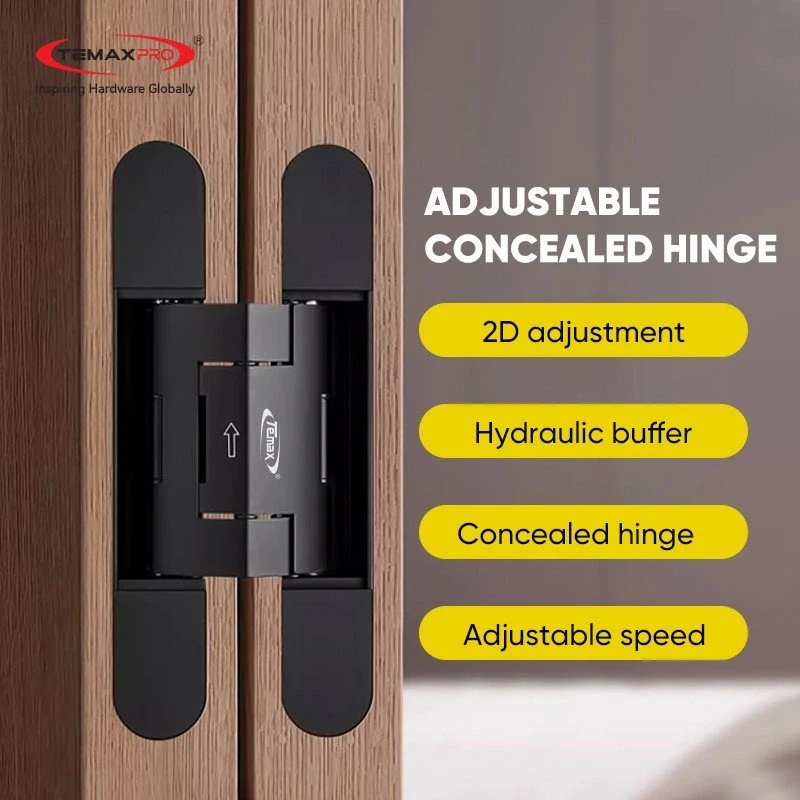

Stable Load-Bearing Capacity, Two-Dimensional Adjustment

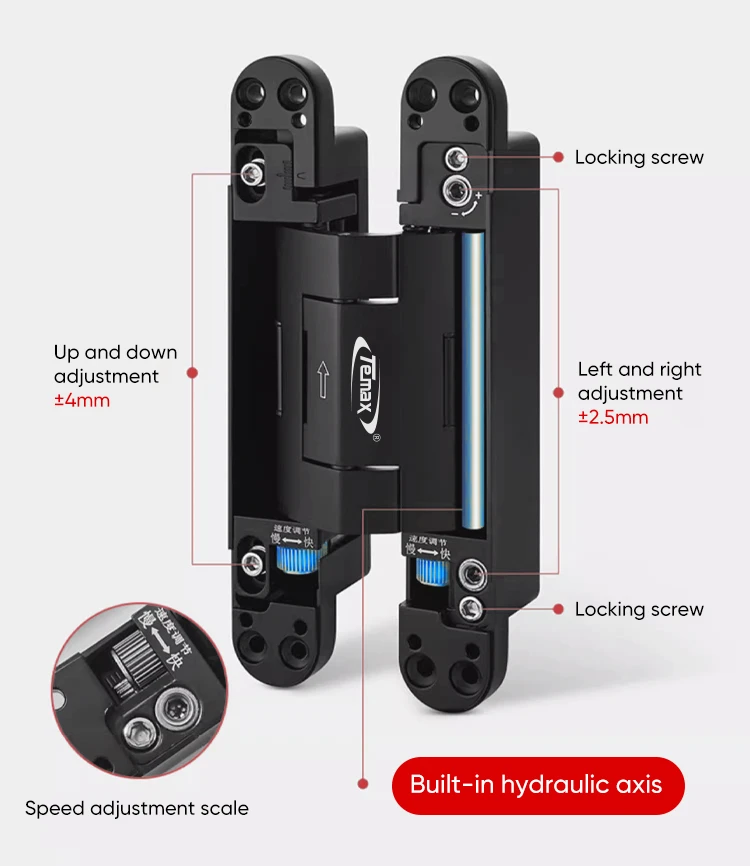

Single hinge can bear up to 40KG, and a set can bear 70-80KG, Temax hidden soft close hinges suitable for heavy-duty solid wood doors. Supports ±2mm left and right adjustment and ±4mm up and down adjustment, easily correcting on-site installation errors and saving installation time.
Installation is not limited to left or right, 6 colors available.
It is universally compatible with both left and right sides, so you don't have to worry about installing it backwards, which can reduce the dimensions of procurement and inventory management; it offers 6 colors, including gold, antique bronze, and antique red bronze, to match different door styles and meet the ever-increasing market demand for brass.
Product Function And Angle

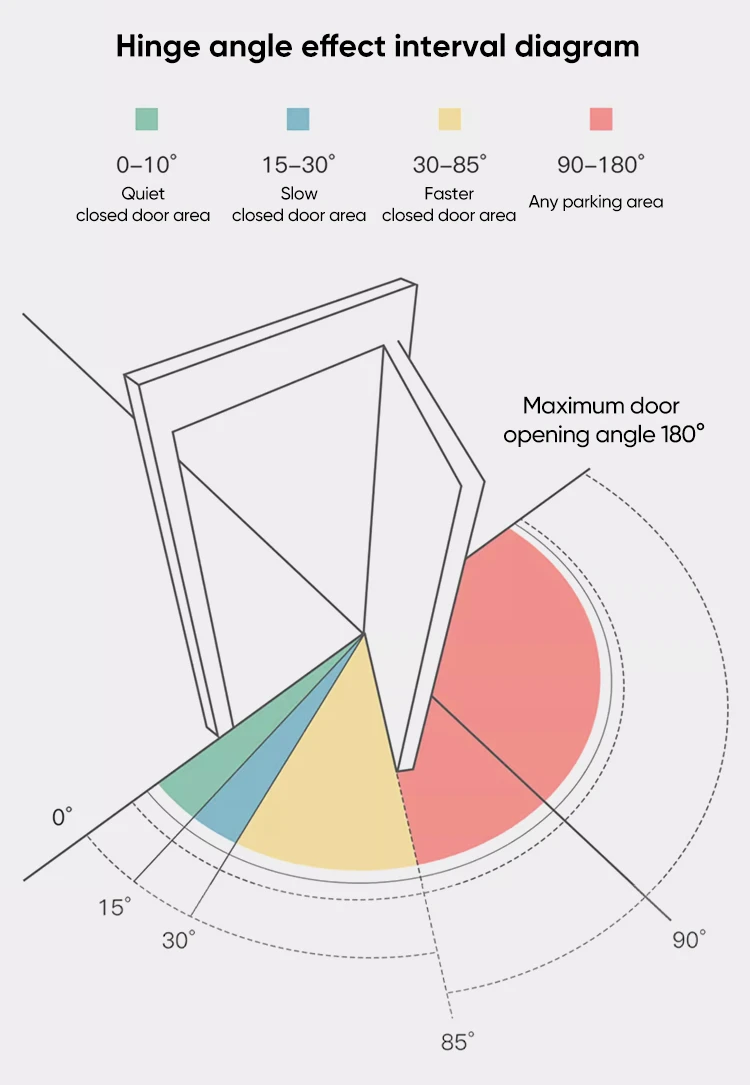

The automatic door closing Angle of this product is 0°- 85°, and the arbitrary staying area is 90°- 180°.
Set the stop door positioning function at 90*, soft positioning, no need to install door stopper.
Less than 85 hinge automatically close the door, 85°- 30° for the fast closing area.
(Entry lock type hinge) 30° - 10° slow closing the door, 10°- 0° fast closing and locking.
(Mute type hinge) 30°- 10° slow closing the door, 10° - 0° mute closing.
FAQ
Q: What's the difference between HBG005 and HG005?
A: They are different products - never mix them up. HG005 is the non-buffered 3D-adjustable version; HBG005 is the hydraulic buffered 2D-adjustable version (left/right ±2mm, up/down ±4mm).
Q: What is the load capacity?
A: Temax hidden soft close hinges 40KG per hinge (80KG per pair). Capable of supporting heavy solid wood doors.
Q: What is the maximum opening angle? Can the door stay at any position?
A: Maximum 180°, with soft positioning at 90°. The door can stay at any position between 90° and 180°.

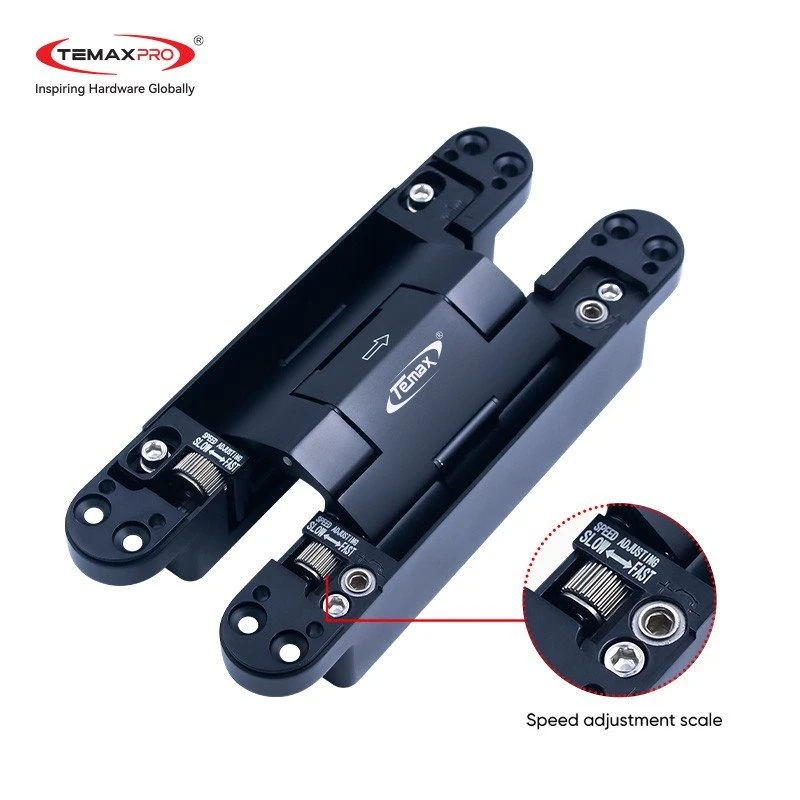

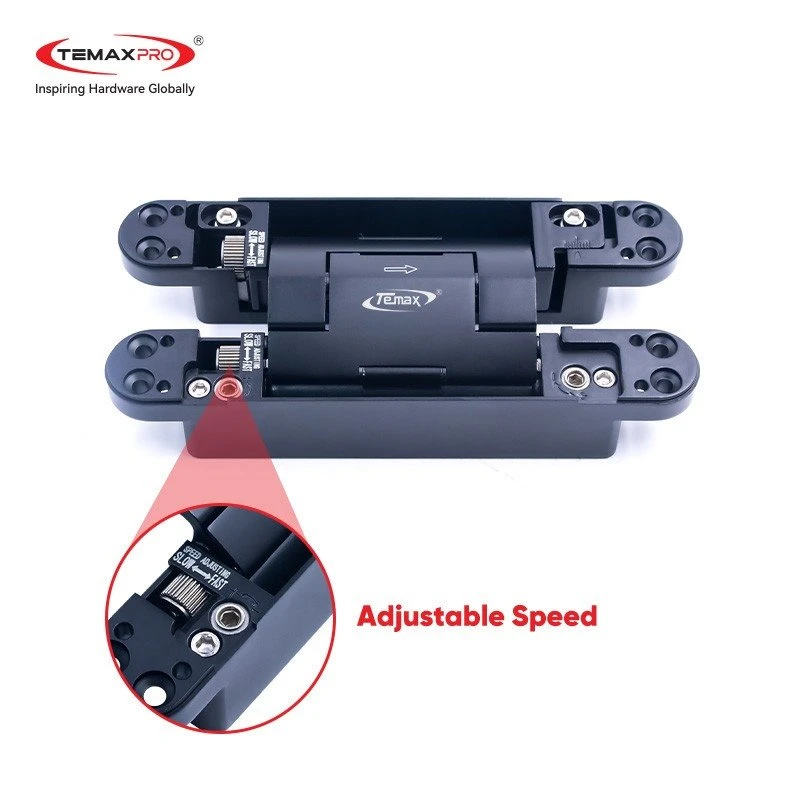

Q: How do I adjust the closing speed?
A: Use a 4mm hex wrench. Factory default is the slowest speed (anti-pinch safety). Turn clockwise to speed up, counterclockwise to slow down. For twin-cylinder hinges, adjust both sides synchronously. Never force the screw past the end - it may cause oil leakage; back off ½~1 turn is recommended.
Q: What doors/environments is it suitable for? What's the warranty?
A: Suitable for wooden doors (leaf thickness >38mm, mortise depth 37mm), operating temperature -30℃ to 50℃. Ideal for hotels, hospitals, KTVs, and residential room doors. 5-year warranty based on 300,000 open/close cycles.
