Parameter
| Brand Name | Temax |
| Model Number | M73G |
| Application | Door, Sliding Door, Kitchen, Bathroom |
| Product Name | pocket door wheel assembly |
| Material | aluminum alloy |
| Door width | Max 700mm |
| Door thickness | Max 30mm |
| Door height | 1600-2700mm |
| Load | 30kg single door |
| Feature | Swing folding pocket door,Durable, rolling smoothly, Rust-proof, Low Noise |
| OEM service | available |
Product Advantages

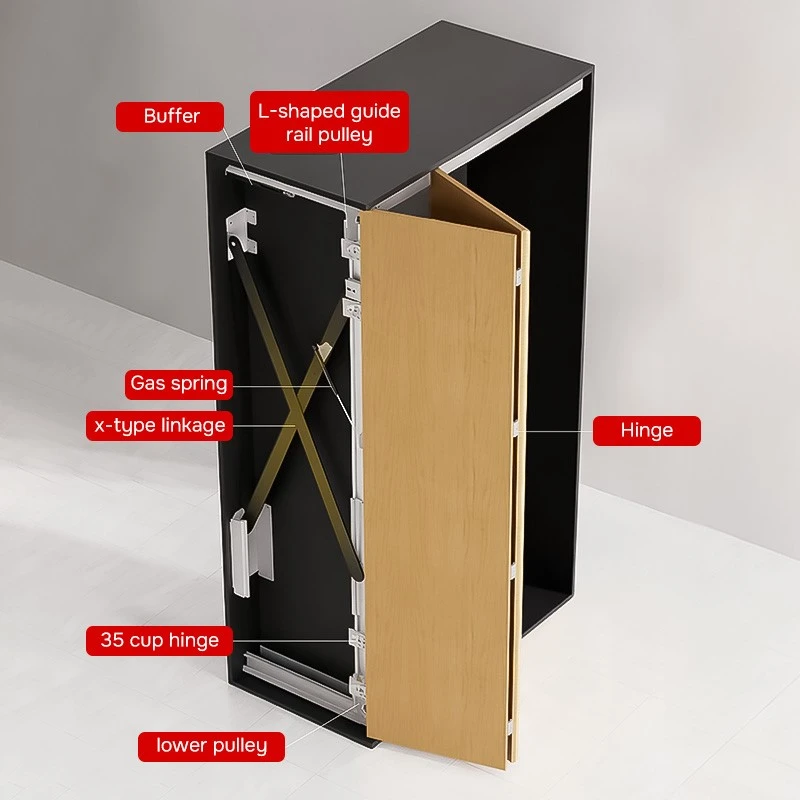

Lever Structure, Smooth Opening and Closing
TEMAX pocket door wheel assembly utilizing a precision lever structure, the door operates stably and opens and closes smoothly. During actual operation, the door folds and moves along a set path without wobbling or getting stuck halfway.

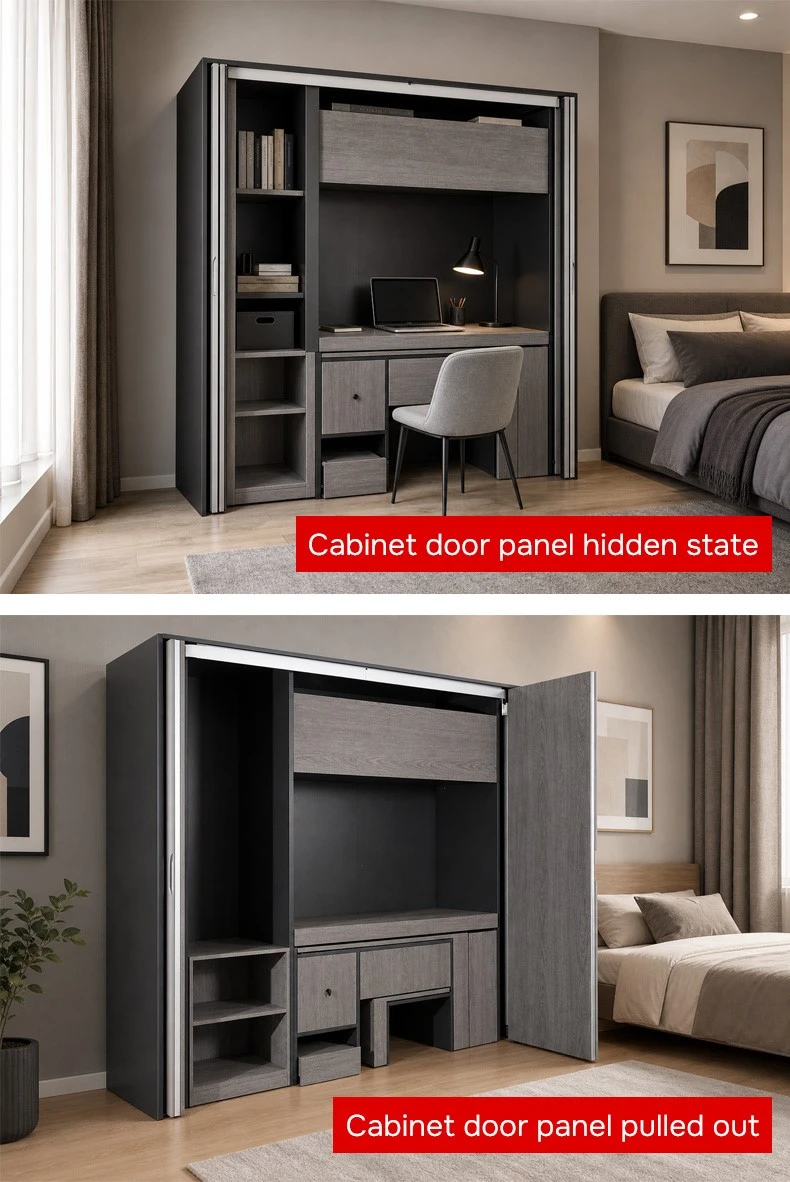

Space-Saving Retraction After Opening
Unlike ordinary cabinet doors that take up space in front, this door folds and retracts into the cabinet after opening. This prevents obstruction when retrieving clothes or organizing items, making it more convenient in narrow rooms.
Lightweight and Durable Aluminum Structure
TEMAX pocket door wheel assembly main body uses aerospace-grade aluminum, making it lighter than typical steel structures while maintaining the strength required for door operation. It is resistant to rust in humid environments and minor scratches do not significantly affect its use.
Hydraulic Buffer for Safer Closing
As the door approaches the closed position, the hydraulic buffer slows down the closing speed, allowing the door to close slowly. When there are elderly people or children at home, less collision noise can reduce the risk of getting your hand caught in a door when it's closing quickly.
Product Dimensions
FAQ
Q: My home has limited space, what problems can the M73G solve?
A: TEMAX pocket door wheel assembly M73G is for pocket door systems. After opening, the door slides along the track into the pre-reserved space in the wall, unlike hinged doors which take up space in the hallway or next to furniture.
Q: Why is it so quiet when pushing the door?
A: The noise mainly comes from the friction between the rollers and the track. The M73G roller assembly works closely with the matching track, allowing the door to move more smoothly and reducing friction noise when pushing and pulling.
Q: My door is already installed, can I just buy and install it?
A: It's not recommended to order based solely on appearance. You need to provide the installer with the door's height, width, thickness, and weight, and check if there is enough space in the wall for the door to retract, and then confirm if the system is compatible.
Q: It was smooth when first installed, but after a while it becomes stiff to push. What should I do?
A: First, clean the dust and small debris from the track, then check if the rollers are misaligned and if the fixing screws are loose. If the door is still stuck after cleaning, the installer should recalibrate the position of the door leaf and rollers.
