Parameter
| Brand Name | Temax |
| Model Number | WF062 |
| Type | pivot door kit |
| Product Name | Temax Hydraulic Central Axis Pivot Door Kit System WF062 |
| Material | 45# Steel + SS304 + Forged Bearing Steel (Axis) |
| Finish | Stainless Steel / Steel Body (Anti-corrosion treatment) |
| Door Thickness | ≥38mm (recommended ≤50mm for adjustment range) |
| Max Door Width | ≤1100mm (WF062.120) / ≤1250mm (WF062.150) |
| Max Load Capacity | 120kg / 150kg (depending on model) |
| Max Opening Angle | 125° (both inside & outside opening supported) |
| Positioning Angle | 90° hold-open function |
| Service Life | 500,000 cycle fatigue test (optional / tested standard) |
| Door Type | Framed aluminum door / wooden door with pivot axis |
Product Advantages

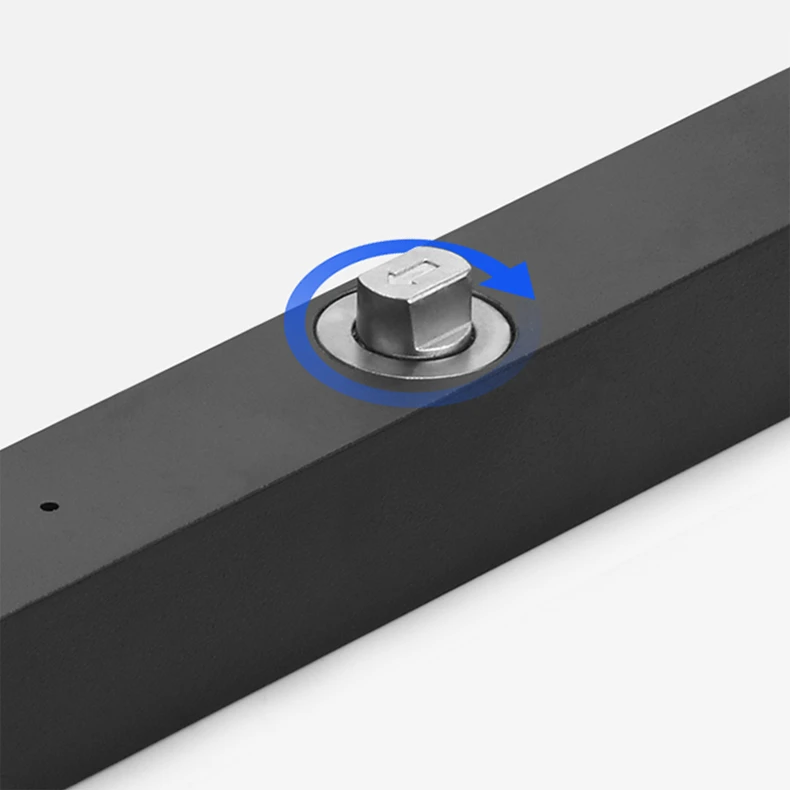

Heavy-duty hydraulic top and bottom hinge structure for stable load-bearing capacity.
The Temax Hydraulic Central Axis System utilizes a high-strength forged steel shaft structure combined with a hydraulic buffer system, with a maximum load capacity of up to 150kg. The overall structure is robust and stable, effectively distributing the door's weight and ensuring smooth and reliable operation even during frequent opening and closing of heavy-duty doors.

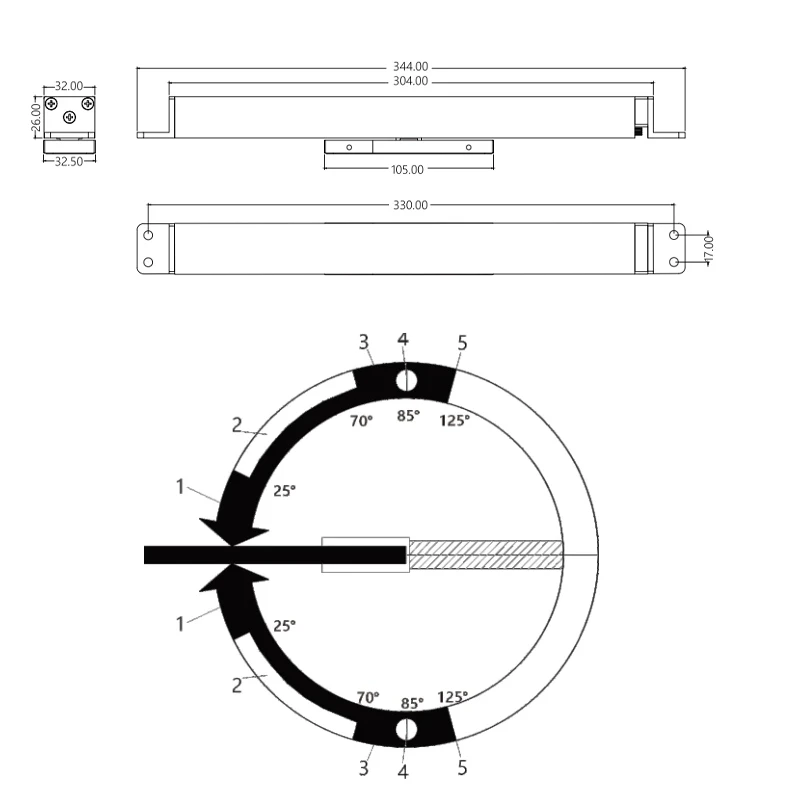

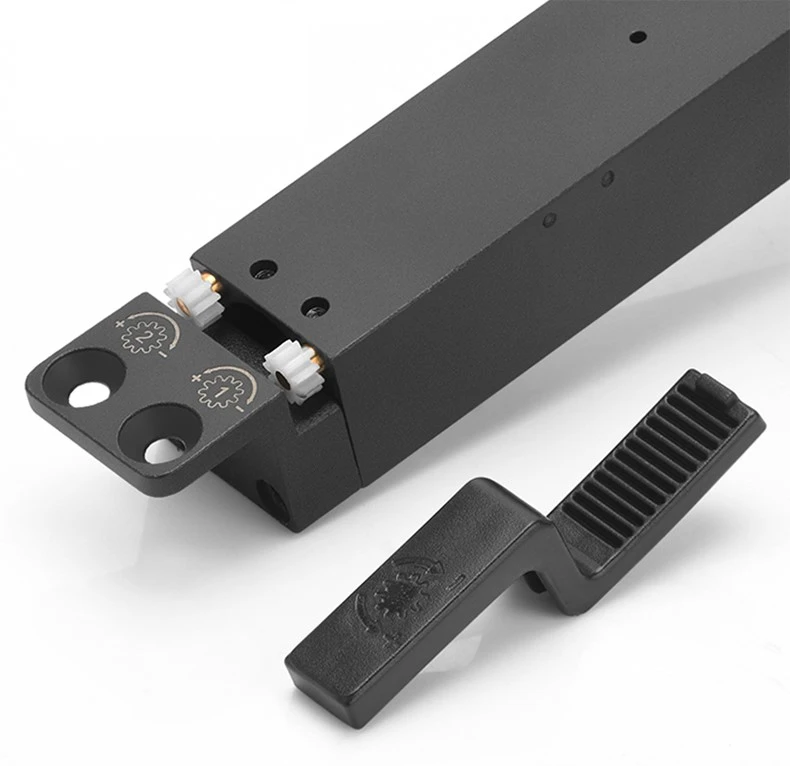

Smooth closing with precise multi-stage speed adjustment.
The built-in dual-valve hydraulic speed control design allows for adjustment of the door's closing speed according to usage needs, achieving multi-stage buffered closure. This effectively reduces door impact and collision noise, making the opening and closing process smoother, quieter, and safer.
90° positioning stop for more flexible opening angles.
Temax Hydraulic Central Axis Pivot Door Kit System Supports a 90° positioning stop function, facilitating personnel passage, goods handling, and indoor ventilation; the maximum opening angle of the door can reach 125°, flexibly adapting to various usage scenarios such as hotels, offices, apartments, and commercial spaces.
Two-dimensional adjustable system for precise and convenient installation
Equipped with an adjustable upper and lower base structure, the door can still be finely adjusted left and right and horizontally after installation. This facilitates quick correction of the door's position and gap spacing, reducing installation difficulty while improving overall installation accuracy and visual effect.

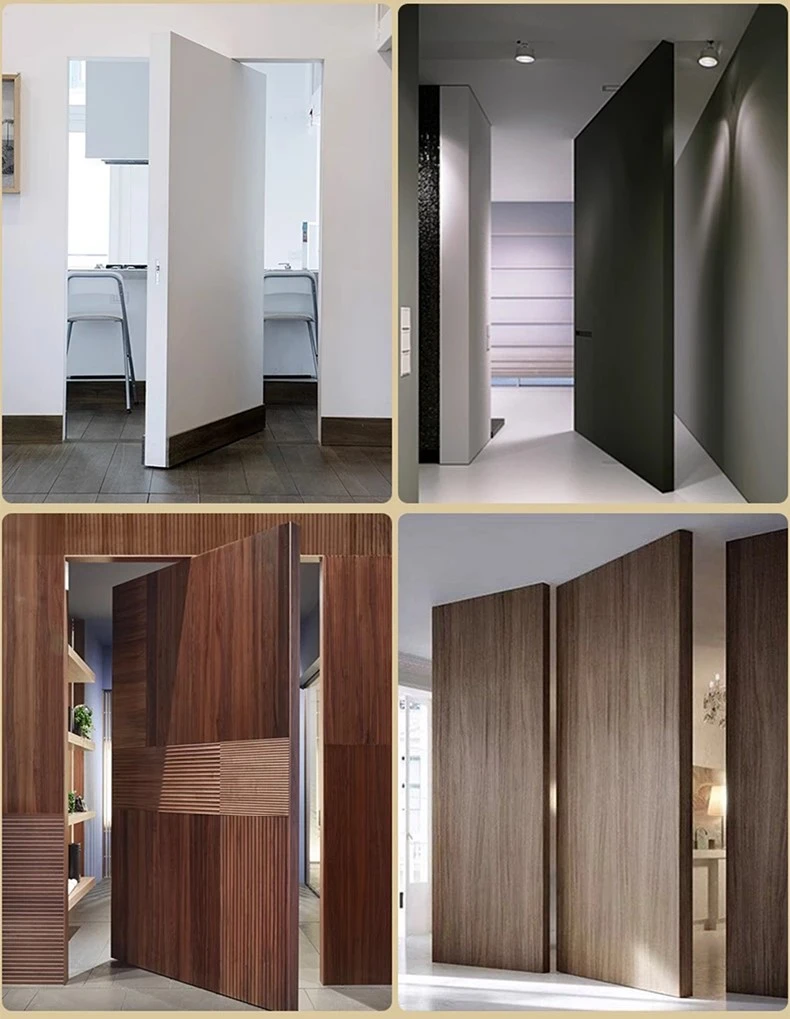

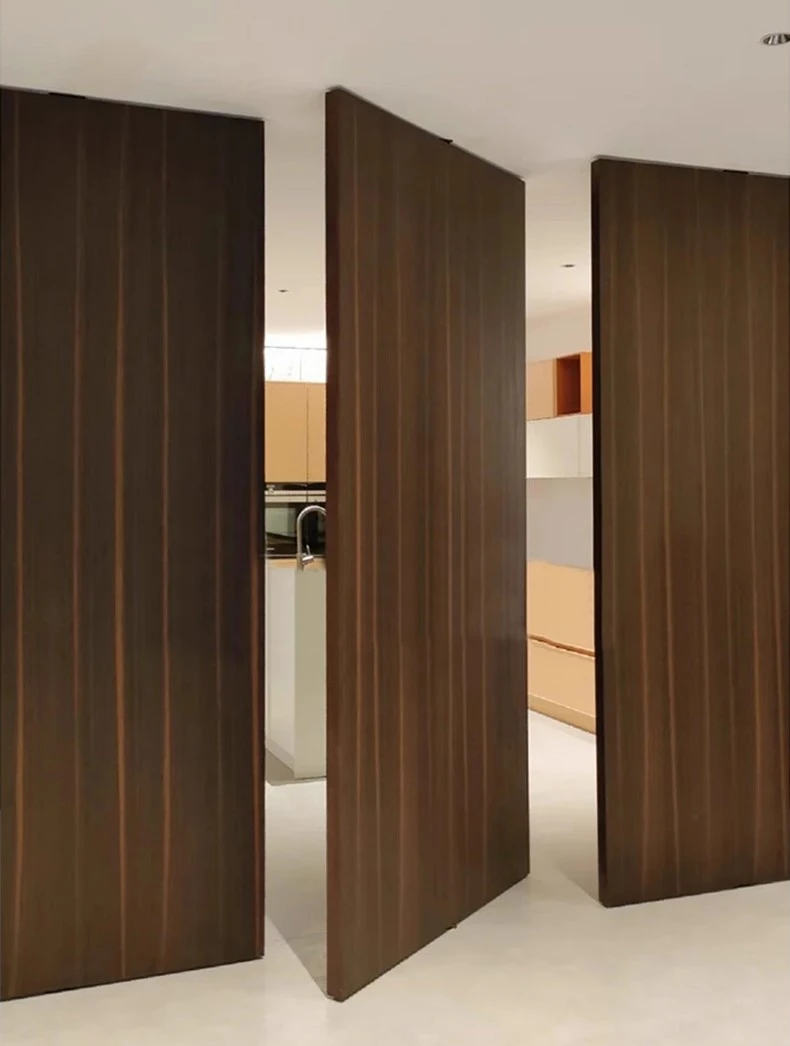

Compatible with various door types and wide application range
The Temax Hydraulic Central Axis System is suitable for various door structures, including wooden doors and aluminum frame doors, meeting the installation needs of different interior designs and engineering projects. It is widely used in hotels, office buildings, apartments, shopping malls, and other spaces with high requirements for load‑bearing capacity and door closing performance.
FAQ
Q: In which locations is this pivot door kit suitable for installation?
A: Suitable for hotels, office buildings, apartments, shopping malls, clubs, and other commercial and residential spaces. It meets the needs of different scenarios for door load-bearing capacity, silent closing, and stable operation.
Q: Is it suitable for high-frequency use scenarios such as hotels and office buildings?
A: Yes. The high-strength forged steel shaft structure has excellent stability and durability. Combined with the hydraulic buffer system, it can meet the daily use needs of high-traffic areas such as hotels and office buildings.
Q: Can it be used for large or heavy doors?
A: Yes. This hardware has a maximum load capacity of 150kg and is suitable for heavy-duty wooden doors and aluminum frame doors that meet load-bearing requirements. Before actual installation, the specific configuration should be confirmed based on the door's weight, size, and structure.
Q: Is it suitable for indoor environments that require quiet operation?
A: Yes. The dual-valve hydraulic speed control system enables multi-stage buffer closing, reducing the impact and noise generated by rapid door closing. It is suitable for spaces with high quiet requirements, such as hotel rooms, offices, and apartments.
Q: What are the suitable usage scenarios for the 90° positioning function?
A: The 90° positioning door stop facilitates continuous passage of people, moving goods, and indoor ventilation. It is suitable for scenarios such as hotel lobbies, office corridors, conference rooms, and commercial stores where doors need to be temporarily kept open.
Q: Can it be installed on both wooden doors and aluminum frame doors?
A: Yes. The hardware is compatible with both wooden door and aluminum frame door structures and is equipped with a two‑dimensional adjustable installation system, allowing for fine‑tuning in both left and right directions and horizontally. This facilitates precise adjustment of the door gap according to different door types and on‑site installation conditions.
