Parameter
| Product Name | TEMAX adjustable sliding door rollers System |
| Loading bearing | 50kg |
| Material | Cold Rolled Steel+Plastic |
| Door Thickness | Min 16mm |
| Door width | Min380mm |
| Door gap | Min 6mm |
| Height adjustment | ±4mm |
| Accessories | 4*Buffer+8*Wheels. Aluminum Profile/Rails Optional. |
| Packaing | 1 Sets/Box, 15 Boxes/Carton. |
| Carton Diamension | 50*37*17cm. G.W.22kg. |
Product Advantages
Suitable for heavy-duty TV cabinets and wardrobe sliding doors
TEMAX adjustable sliding door rollers System Designed for various home sliding door systems, including heavy-duty TV cabinets and wardrobes. Features include silent sliding, smooth operation, two-way soft-closing, and quick-release installation; supports a maximum load of 60kg per door panel.

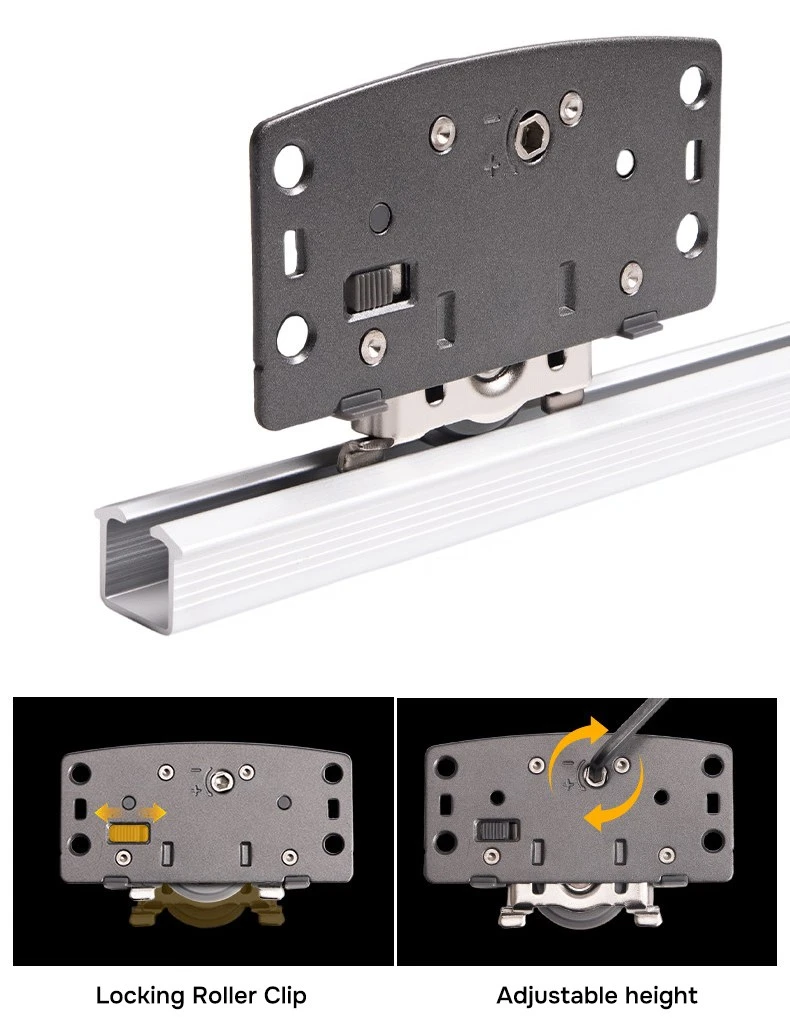

Precision bearing rollers with easy installation and adjustment
Precision bearing rollers are engineered to fit perfectly with the matching track series, ensuring stable load-bearing and smooth movement. The rollers are non-directional (no distinction between top and bottom); simply lock them before insertion and release the latch after installation to engage. The stopper is screw-fixed and adjustable to suit the door opening height.

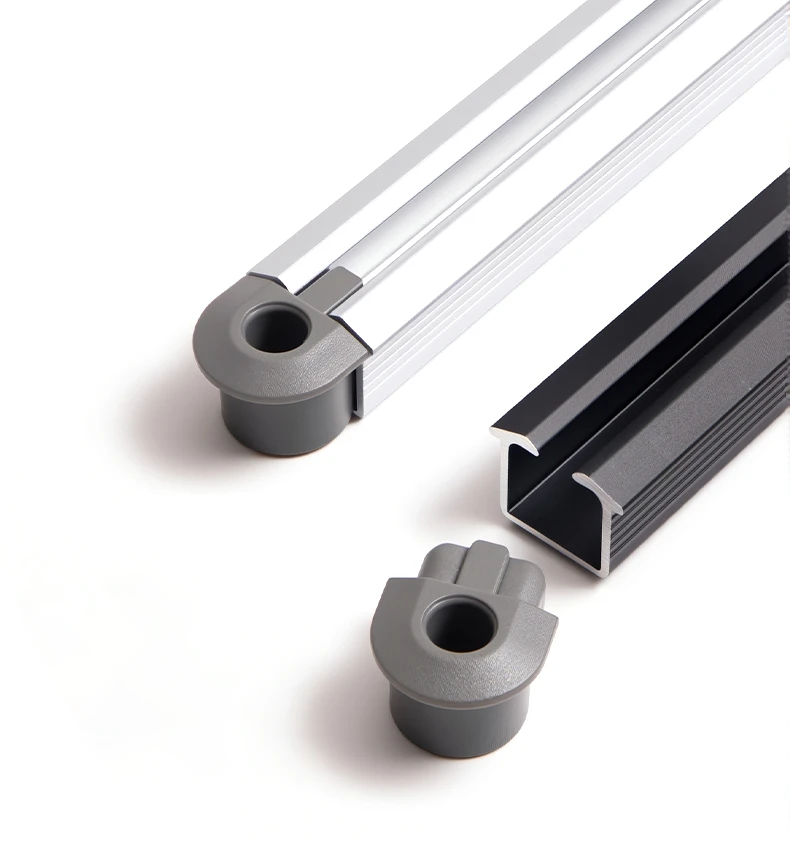

Anti-derailment design for enhanced stability
TEMAX adjustable sliding door rollers System equipped with an easy-to-install anti-derailment device and track end caps, the system limits roller travel and minimizes the risk of the door derailing during operation. Available in two colors to complement various home Decorative style.

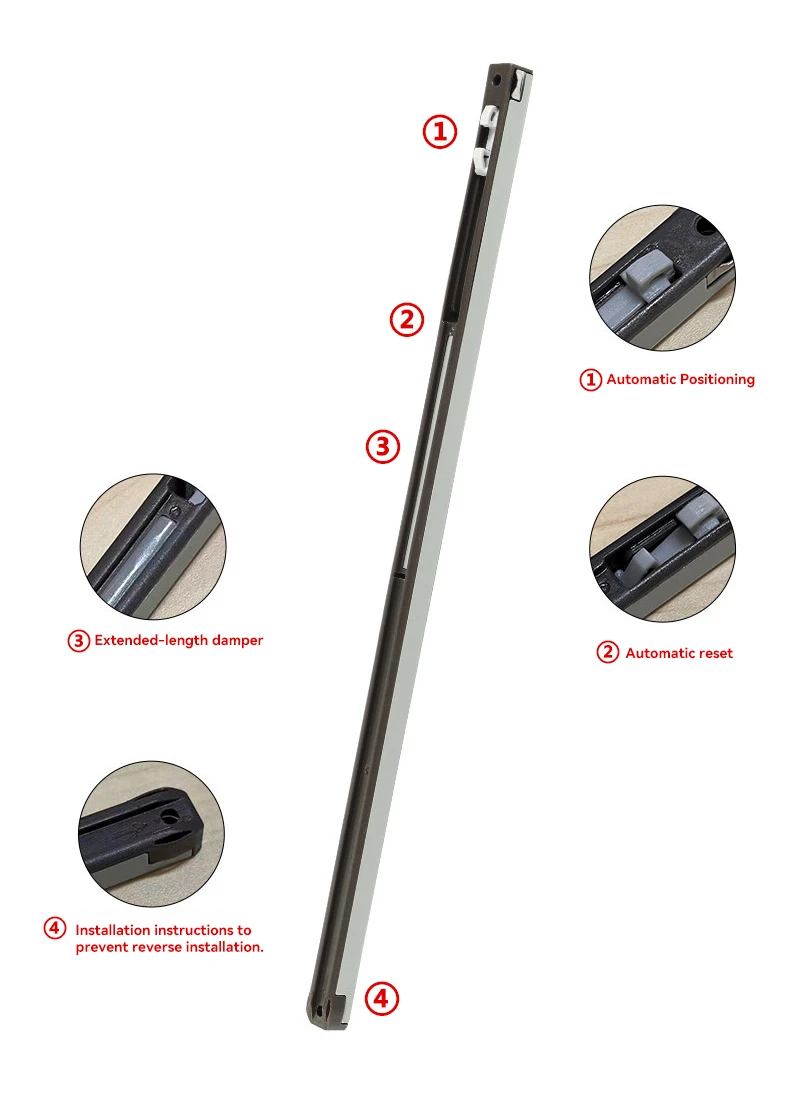

Double soft-closing and automatic reset
The sliding door rollers system features anti-collision dampers that provide double soft-closing and automatic reset functionality. As the door slides to either end of the track, it decelerates smoothly and resets, reducing noise, wear, and damage caused by forceful impacts.

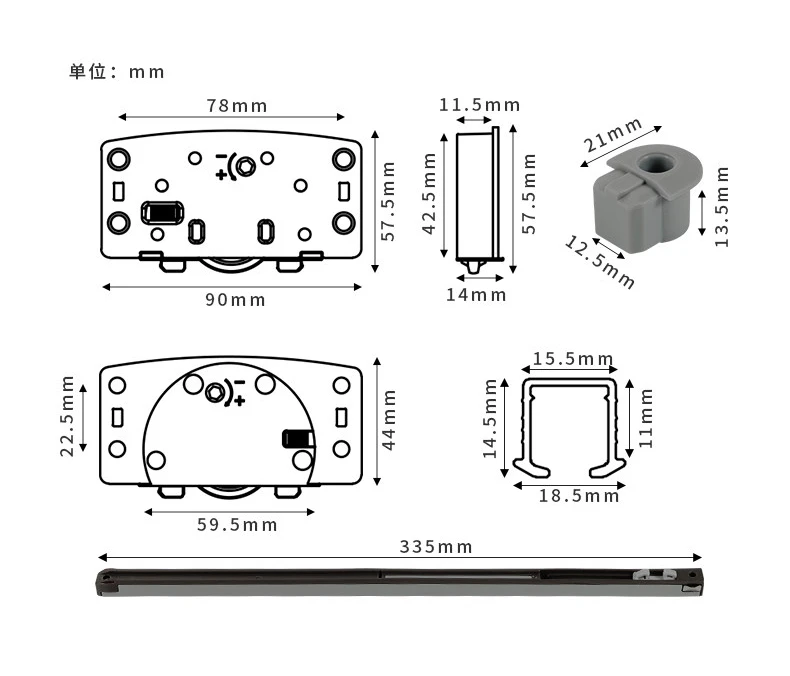

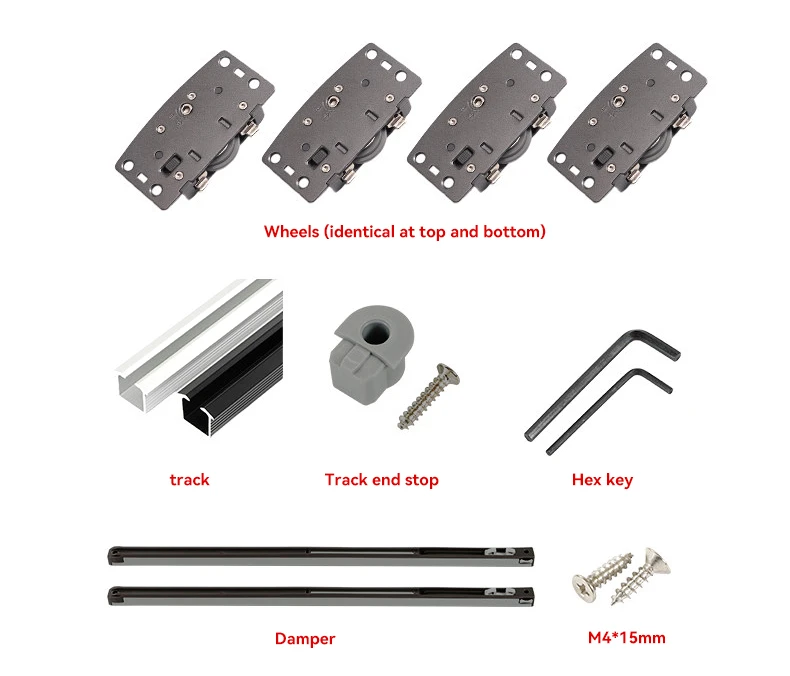

Product Accessories and Dimensions
FAQ
Q: Which types of furniture are these adjustable sliding door rollers suitable for?
A: This roller system is suitable for heavy-duty TV cabinets, wardrobes, and other sliding doors in the home. It supports a maximum load of 50 kg per door panel; please verify the panel's weight and dimensions against the track specifications prior to installation.
Q: Can the height of the rollers and stoppers be adjusted?
A: Yes. The rollers allow for flexible height adjustment to suit the door opening, while the screw-fixed stoppers can also be repositioned based on the actual installation height to ensure smoother, more stable door operation.
Q: How is it installed?
A: Secure the rollers using the locking clip before inserting them into the track; once inserted, release the clip to allow them to spring into position. There is no need to distinguish between top and bottom rollers during installation, making the process more convenient.
Q: How does the system minimize the risk of collisions and derailment?
A: The system is equipped with an anti-derailment device, track end caps, and a two-way soft-close damper. As the door slides to either end, it decelerates smoothly and resets automatically, thereby reducing impact, noise, and the risk of derailment.
